Tutorial: Setting Up a Spreadsheet

In this tutorial, we will cover how to set up a Spreadsheet node in a graph from start to finish. As you will see throughout, spreadsheets are like enhanced Expression nodes: they let you set up different conditional plug values without writing multiple if statements in Python. Just like Expression nodes, Spreadsheet nodes are open-ended and have a wide variety of uses, so what we show here only represents one possible case.

We will be creating a multi-shot graph designed to batch render four shots, which changes its render options based on the current shot. For simplicity, we will omit the actual asset and task/preview nodes, the setups for which are covered in the Assembling the Gaffer Bot tutorial. You can view a working sample of this graph in Help > Examples > Rendering > Multi-shot Render Spreadsheet.

Adding the Options nodes

First, we’ll create a StandardOptions node (Scene > Globals > Standard Options). We will use it to add overscan for each shot.

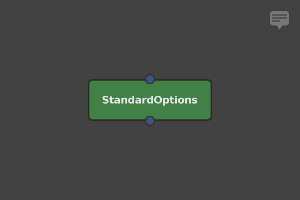

StandardOptions node in Graph Editor

Next, connect a downstream AppleseedOptions node (Appleseed > Options). We will use it to adjust the renderer’s AA samples per shot. You can use other renderers’ equivalent nodes, but the particular options and their names will differ.

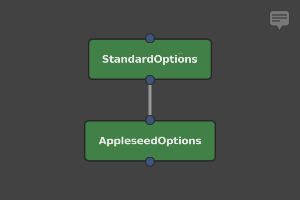

AppleseedOptions node in Graph Editor

Adding a global Context Varible

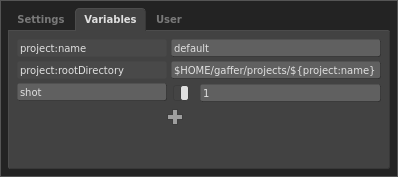

Now, in order for our multi-shot graph to work, we need to declare and initialize a Context Variable that will determine the current shot. It would be most useful if this value were available at all times, so let’s make this a global Context Variable. Go File > Settings… to open the graph’s settings. In the Variables tab, click plus, then select Add > String from the context menu. For the variable’s name on the left, type shot, and for the value, type 1.

The shot global Context Variable in the Settings window

Now the graph will have a Context Variable that defines the current shot.

Creating a Spreadsheet node

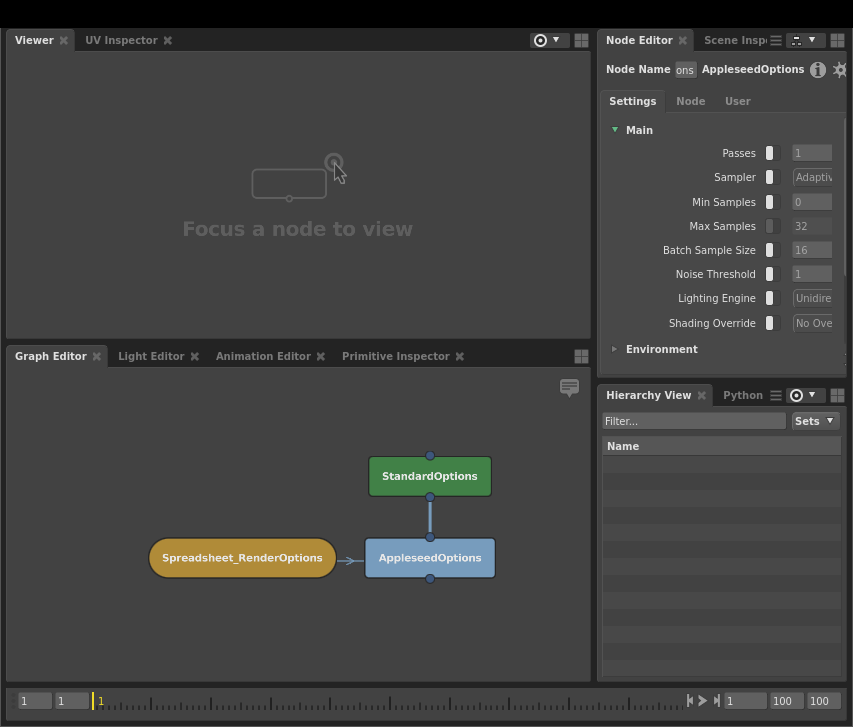

It’s time to create and start setting up a Spreadsheet node to vary the options based on the current shot. Select the AppleseedOptions node, then, in the Node Editor, expand the Main section. Right-click the Max Samples plug’s label, and select Create Spreadsheet…. A new Spreadsheet node will appear in the Graph Editor, and a new Node Editor window focused on it will open. It will have a column corresponding to the Max Samples plug with its current value.

Spreadsheet node in the Graph Editor and a new Node Editor window

You will notice the column’s cells are disabled at first – this is because the plug we connected has an enabled switch that was turned off. The connection action assumes the plug should remain in its initial state before connection, unless we specify otherwise. We can keep this in mind if we need to run test renders with and without our changes: simply disabling the appropriate cell in the current shot’s row will make it fall back to the default.

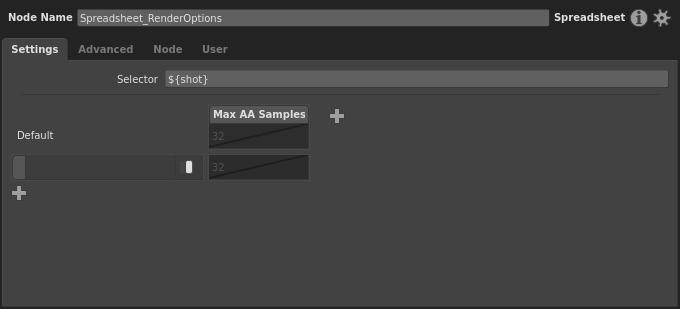

For the time being, let’s make the spreadsheet vary this one plug. In the Node Editor window, type ${shot} for the Selector plug. Notice how we use the ${<variableName>} variable substitution syntax here. If we wanted, we could include other text, like a path or a multi-part string such as ${sequence}/${shot}.

The spreadsheet with a value in the Selector plug

The spreadsheet is now prepped to expand our one Context Variable, and we can dictate each render’s peak AA samples based on the shot.

Adding rows and columns

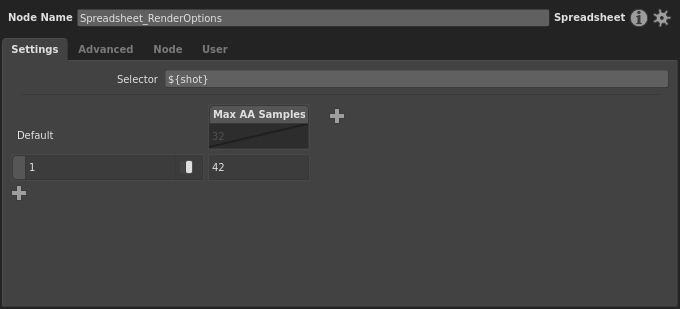

Let’s add a row for our first shot. You’ll notice that beneath the Default row there’s a blank row. This will be the first row that is compared against the selector during processing. Click the row’s pattern on the left, then type the first shot number, 1. Let’s assume this shot is noisy, and we need more samples. Enable the row’s first cell (right-click > Enable Cell), and set its value to 42 (double-click it, then type the number).

The spreadsheet with row 1 values

You’ll notice that the Default row has taken the value of the Max Samples plug, 32, and is disabled. This will be the plug’s fallback value for when ${shot} doesn’t match any row’s pattern, which would be the case if a new shot is added to our project. If we wanted a different fallback value, we could enable the cell and change it. Since this graph is responsible for the main renders, we should be dictating the render options in all cases. So, enable the column’s cell in the Default row.

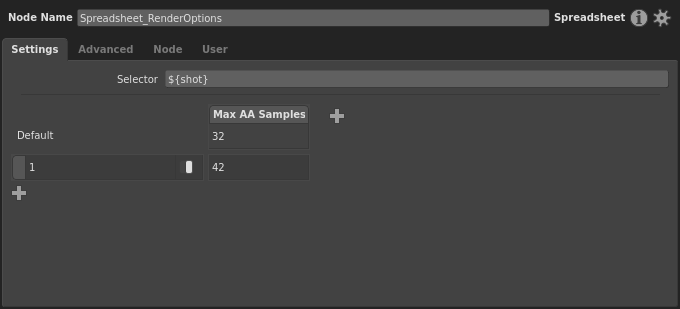

The spreadsheet with enabled Default cell

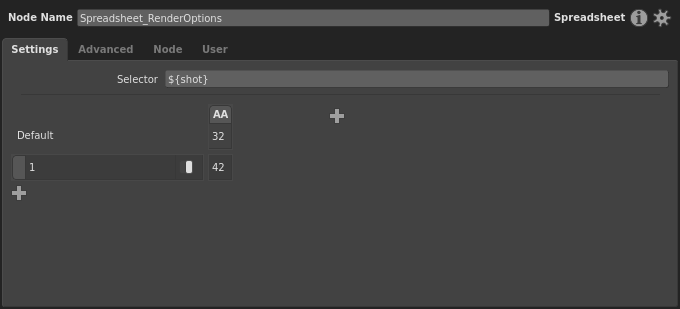

Before we go any further, let’s adjust the formatting of the spreadsheet, and make our column thinner so it takes up less space. Right-click the column header, then select Set Label… from the context menu. Type AA into the dialog and confirm. After that, double-click the right edge of the column to automatically resize it.

The spreadsheet with a clean column

Much better.

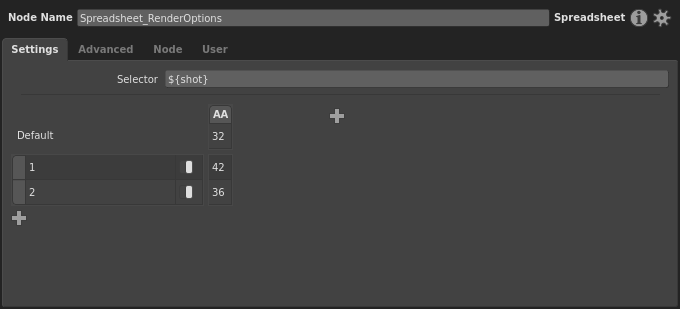

Next, let’s add a new row for our second shot. Click and a new row will be added. Let’s give it a pattern of 2 for shot 2. Let’s assume this shot has extra motion blur that needs to be resolved. Enable the AA cell, and give it a value of 36.

The spreadsheet with row 2

Let’s connect a second plug to the spreadsheet before adding any more rows. Select the StandardOptions node. In the Node Editor, right-click the Overscan plug label (under the Camera section), then select Add to Spreadsheet > Spreadsheet. This little menu is convenient when you need to connect a plug to an existing spreadsheet.

Do the same for Overscan Top, Bottom, Left, and Right.

Dressing up the Spreadsheet node

While we’re at it, so we don’t confuse our spreadsheet with any future spreadsheets, let’s give it a proper name. In the Graph Editor, right-click the Spreadsheet node, then select Show Name. It will now appear like a regular node with its full name. Back in the Node Editor window, give it a name of Spreadsheet_RenderOptions.

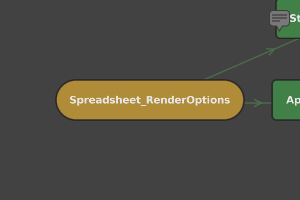

The spreadsheet's full name in the Graph Editor

Great! This will make wrangling multiple spreadsheets in the graph much easier.

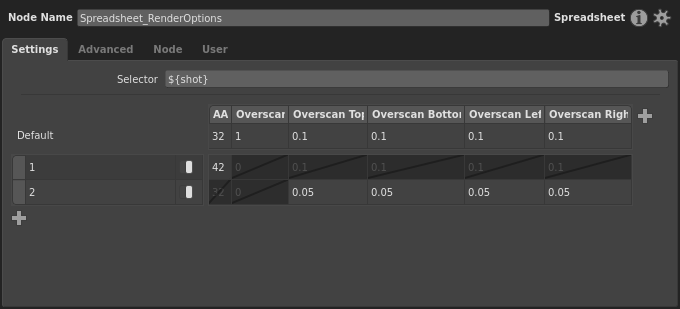

Next, rename the new columns and fill their values like so:

The spreadsheet with overscan values

Accounting for sub-conditions

Let’s pretend there has been a change of plans on the project, and shot 2 has been split into shots 2A and 2B, and there could even be further sub-divisions down the line. We could also assume that only 2B has the motion blur issue, and that only 2A needs the reduced overscan. We’ll need to account for 2A and 2B, and any future shot names starting with 2. So, edit row 2 to be 2A, and add a new 2B row.

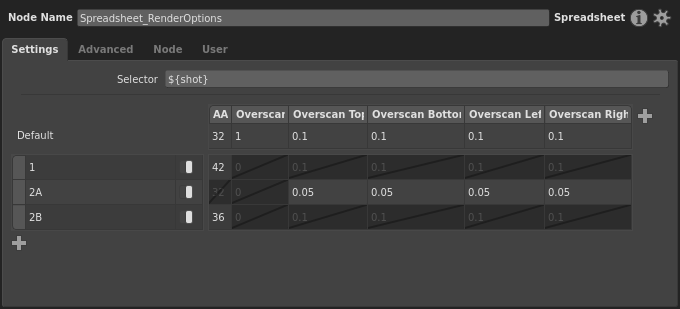

The spreadsheet with rows 2A and 2B

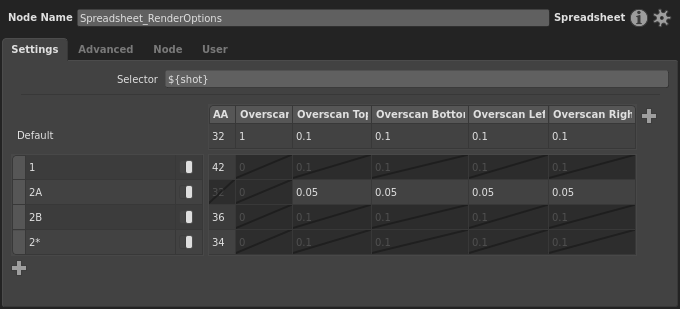

Next, let’s account for any further sub-shots of 2. This is where we can put wildcards into play. Like many strings in Gaffer, a spreadsheet’s patterns support wildcards. So, to account for any letter after 2, we can simply use 2* for the pattern. Let’s add a new row.

The spreadsheet with row 2*


You may be wondering, why doesn’t the general case go first? During processing, a spreadsheet’s rows are checked from top to bottom, and apply the first row that matches. So, if we put the 2* row above 2A and 2B, it would apply for all of the sub-shots. As a general rule, if you want to account for both specific cases and a general case in patterns, you must put the general cast last.

Excellent! The graph will now render correctly for 2A and 2B, and will respond to any further sub-shots of 2 that we haven’t anticipated.


As you can see, the Spreadsheet node is a powerful tool, with an interface that lets you easily map values to various specific conditions.

This was a fairly simple spreadsheet, demonstrating just the render setup portion of a CG pipeline. Spreadsheets have a place in any graph where lots of bespoke or manually-adjusted variation is needed for one or more plugs.
